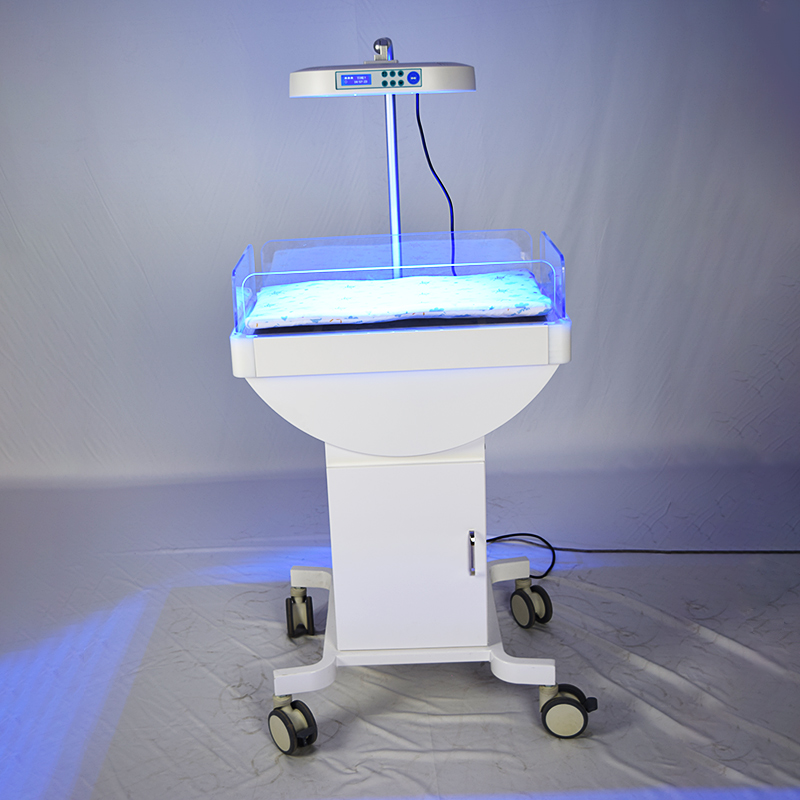

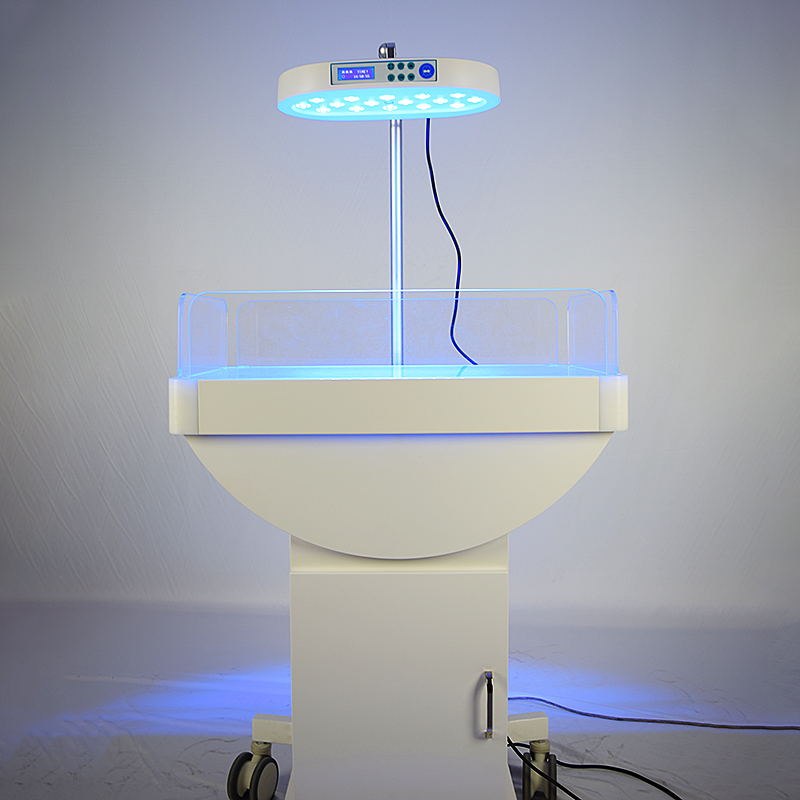

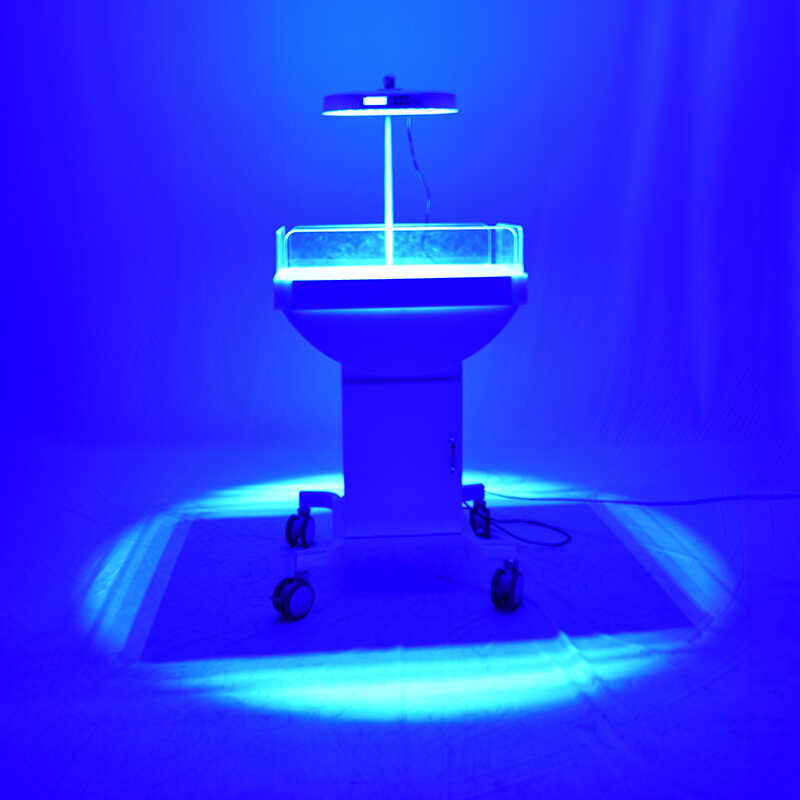

Infant Phototherapy unit H200

Series:

Infant Phototherapy unit
Size:

700*560*1600mm
Description:

The Infant Phototherapy Unit H200 is an advanced double-sided LED phototherapy device designed for efficient treatment of neonatal jaundice. Featuring both upper and lower light sources, it delivers faster and more uniform phototherapy. The system offers adjustable irradiance levels, a user-friendly LCD interface, and a durable, heat-resistant light box. With convenient mobility and ergonomic design, it is ideal for hospitals, neonatal wards, and maternal care centers.
Ingredients:
Function:

The Infant Phototherapy Unit H200 is an advanced double-sided LED phototherapy device designed for efficient treatment of neonatal jaundice

Infant Phototherapy unit H200

Series:

Infant Phototherapy unit

Size:

700*560*1600mm

Description:

The Infant Phototherapy Unit H200 is an advanced double-sided LED phototherapy device designed for efficient treatment of neonatal jaundice. Featuring both upper and lower light sources, it delivers faster and more uniform phototherapy. The system offers adjustable irradiance levels, a user-friendly LCD interface, and a durable, heat-resistant light box. With convenient mobility and ergonomic design, it is ideal for hospitals, neonatal wards, and maternal care centers.

Ingredients:

Function:

The Infant Phototherapy Unit H200 is an advanced double-sided LED phototherapy device designed for efficient treatment of neonatal jaundice

Inquire Email Us

Infant Phototherapy Unit H200

Product Features & Functions

Double-Sided Irradiation: Provides both upper and lower light therapy to improve treatment efficiency and shorten therapy duration.
Adjustable Upper Irradiance Levels: The upper light offers three levels of adjustable irradiance intensity with an additional observation light function.
LCD Display Panel: Displays therapy time and total accumulated time separately for accurate monitoring.
Flexible Timing System: Count-up and count-down timer modes for upper therapy operation.
Fully Adjustable Lamp Holder: Rotates 180° front and back, 360° left and right, with adjustable height for convenient positioning.
High-Temperature Resistant Light Box: Made from durable materials ensuring safety and longevity under continuous operation.
User-Friendly Infant Bed: Foldable side guardrails can be opened for easy nursing and infant access.
Convenient Design: Integrated cabinet base with lockable castors for smooth mobility and safe positioning.

Product Specifications

Item	Specification
Power Supply	AC110–240V, 50/60Hz, 95VA
Radiation Wavelength	425 nm ~ 490 nm
Time Accuracy	1 min / 12 h
Noise Level	≤45 dB
LED Bulb Configuration	Upper Blue Bulbs: 16 pcsDown Blue Bulbs: 36 pcsWhite Light Lamp: 1 pc
Bulb Lifespan	Upper Blue Bulbs: ≥50,000 hDown Blue Bulbs: ≥50,000 h
Radiation Distance	Upper Lamp Box: 300 ~ 600 mmLower Lamp Box: 280 mm
Operating Temperature	+18°C ~ +30°C
Operating Humidity	30% ~ 75% RH
Atmospheric Pressure (Operation)	700 ~ 1060 hPa
Product Size	700 × 560 × 1600 mm
Package Size & Weight	740 × 630 × 1070 mm (Gross 65 kg / Net 45 kg)

Upper Blue Light Lamp Box — Irradiance and Total Irradiance

Theirradiation distance: 500mm, Effective irradiation area : 600mm*300mm
Grade	Ebi average of total μW/cm2 .nm	Ebi max of total μW/cm2
Low Setting	8	550
Medium Setting	16	1500
High Setting	26	2000

Lower Blue Light Lamp Box — Irradiance and Total Irradiance

Theirradiation distance: 280mm, Effectiveirradiation area : 150mm*320mm
Grade	Ebi average of total μW/cm2 .nm	Ebi max of total
Low Setting	35	2500
Medium Setting	40	2800
High Setting	43	3000

Transportation & Storage Conditions

Condition	Specification
Environment Temperature	-20°C ~ +55°C
Relative Humidity	≤95% RH
Atmospheric Pressure	500 ~ 1060 hPa
