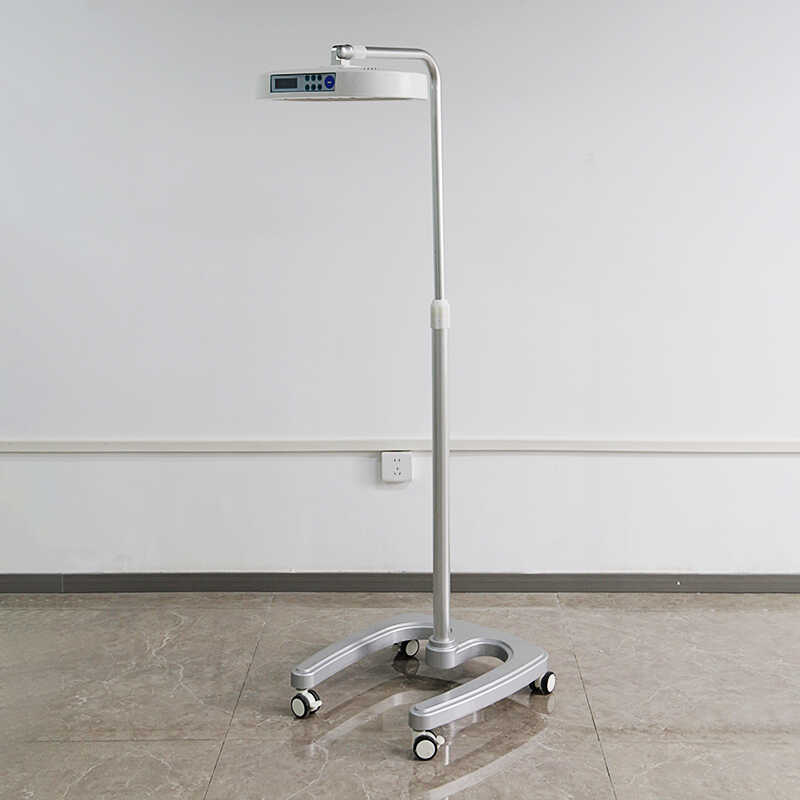

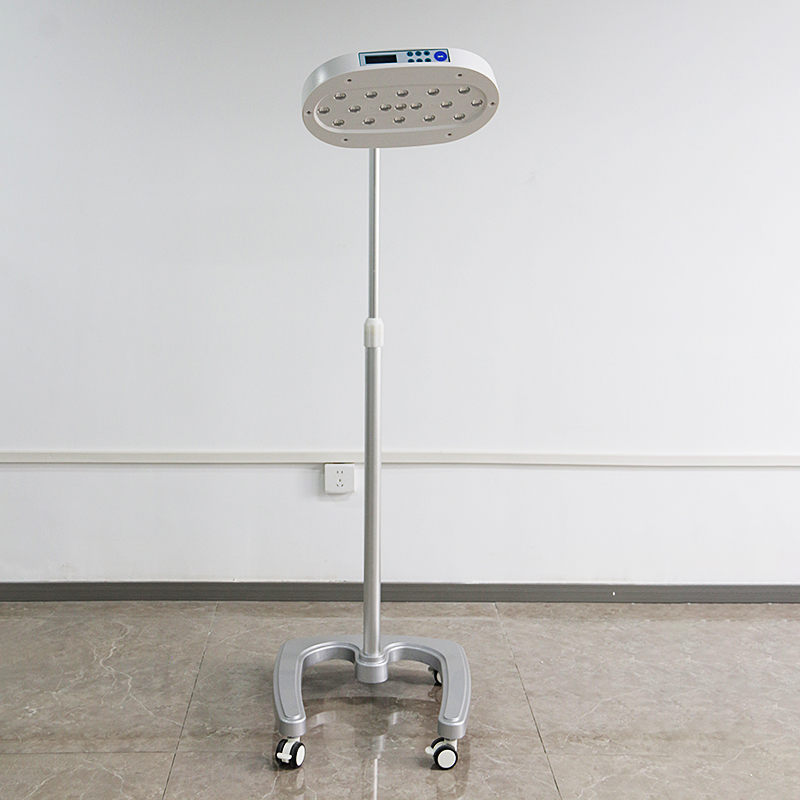

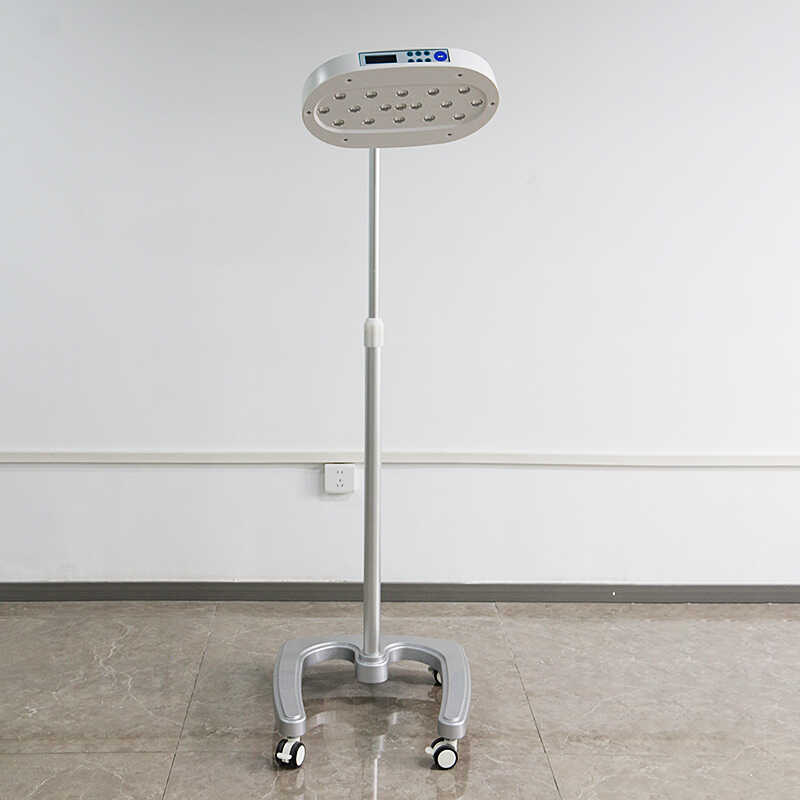

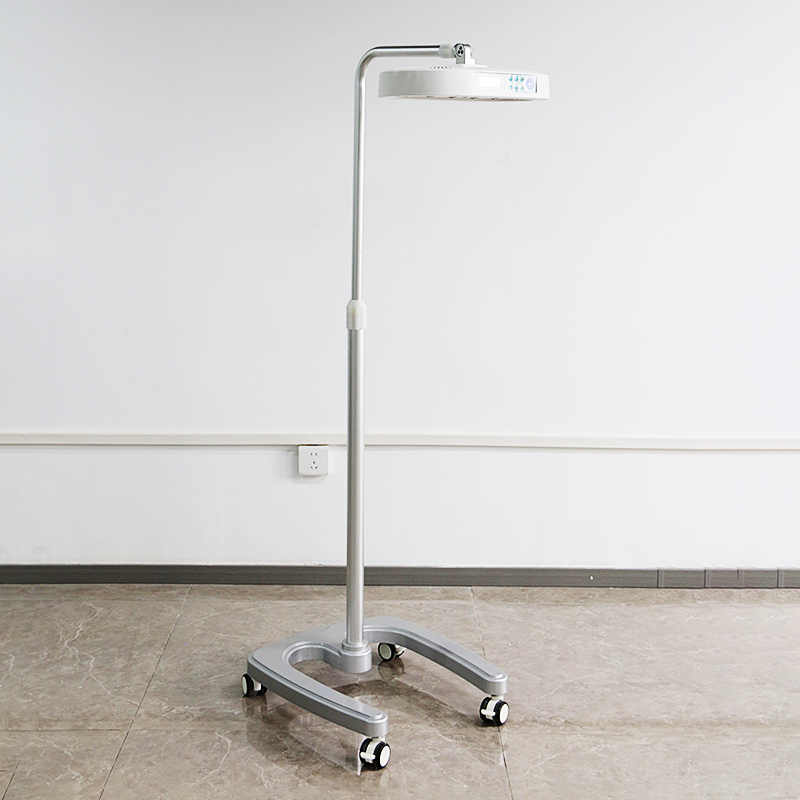

Infant Phototherapy unit H100

Infant Phototherapy Unit H100

Adjustable Irradiance Intensity: Three levels of light intensity—low, medium, and high—to meet different treatment requirements.
Observation Lighting Function: Equipped with individual switch controls for therapy and observation lights.
LCD Screen Display: Shows therapy time and total treatment time separately for precise monitoring.
Flexible Timing Modes: Supports both count-up and count-down timer settings for customized therapy duration.
Fully Adjustable Lamp Head: Lamp holder can rotate 180° front and back, 360° left and right, and height is adjustable from 900 to 1600 mm.
LED Cold Light Source: Uses high-performance LED blue light with large lamp beads for long lifespan and strong therapeutic effect.
Durable Structure: Light box made from high temperature–resistant materials for safety and reliability.

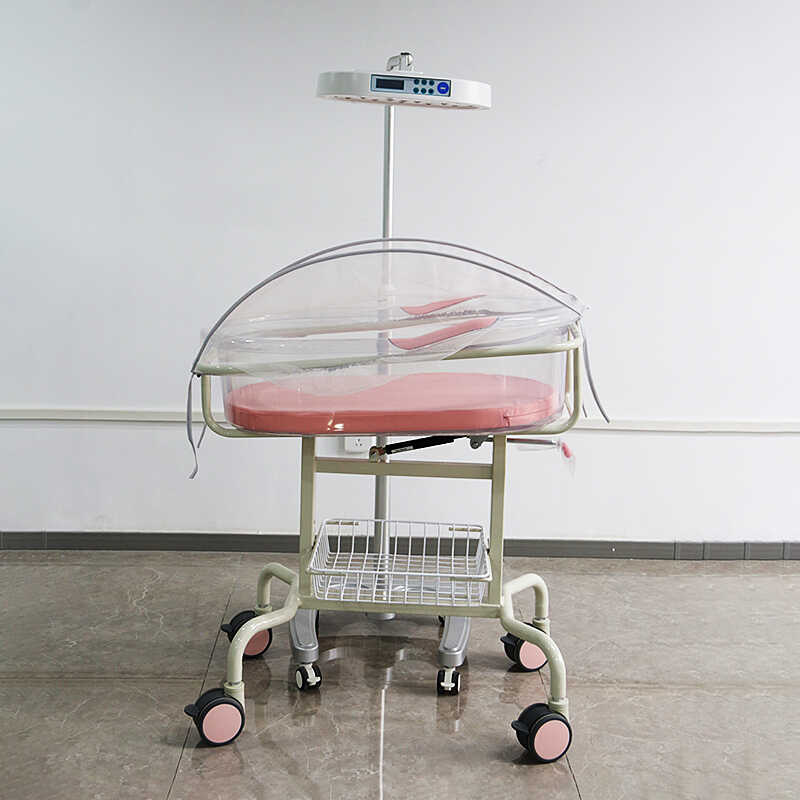

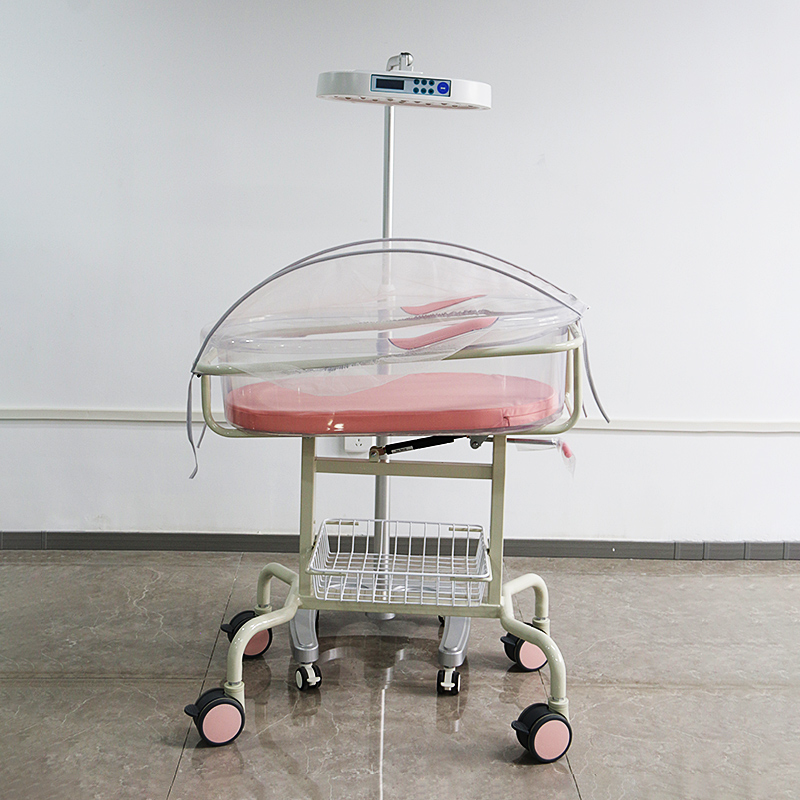

Multi-Equipment Compatibility: Suitable for use with infant incubators, infant radiant warmers, and baby cradles.

Item	Specification
Power Supply	AC110–240V, 50/60Hz, 65VA
Radiation Wavelength	425 nm ~ 490 nm
Height Adjustment	900 mm ~ 1600 mm
Time Accuracy	1 min / 12 h
Noise Level	≤45 dB
LED Blue Bulbs	16 pcs
LED White Bulbs	1 pc
Bulb Lifespan	≥50,000 hours
Radiation Distance	300 mm ~ 600 mm
Operating Temperature	+18°C ~ +30°C
Operating Humidity	30% ~ 75% RH
Atmospheric Pressure (Operation)	700 hPa ~ 1060 hPa
Product Size	470 × 640 × 1700 mm
Package Size & Weight	920 × 600 × 100 mm (Gross 11.5 kg / Net 9.5 kg)

The irradiation distance: 500mm, Effective irradiation area : 600mm*300mm
Grade	Ebi average of total uW/cm2.nm	Ebi max of total
The low setting	8	550
The middle setting	16	1500
The high setting	26	2000
