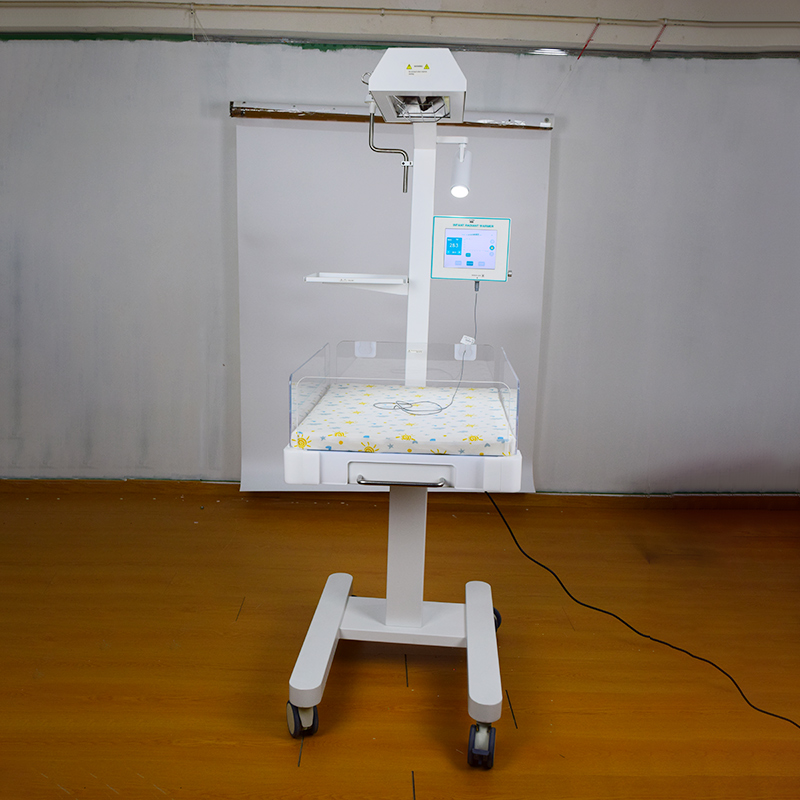

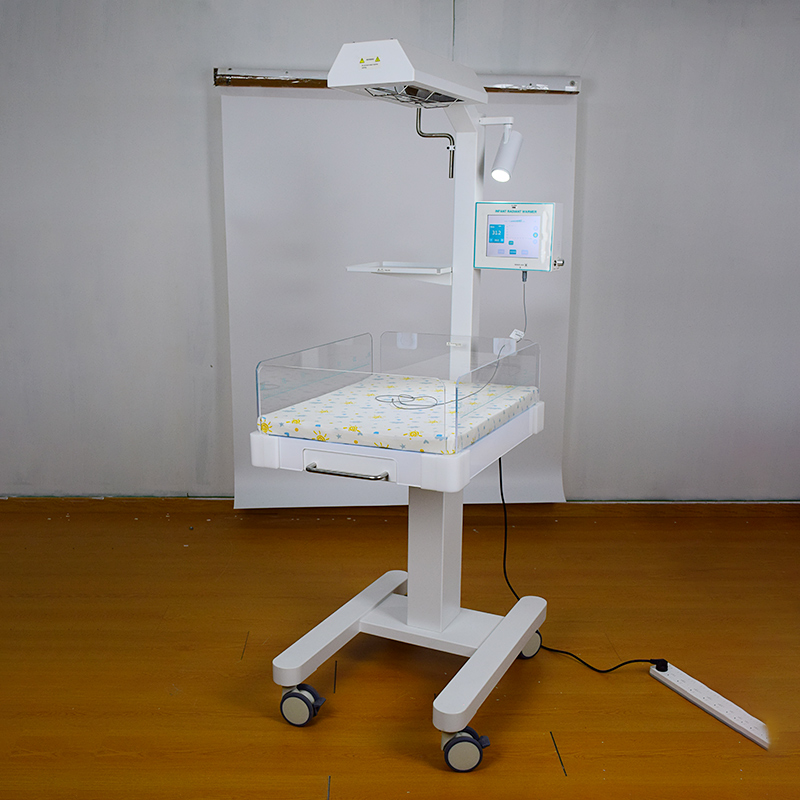

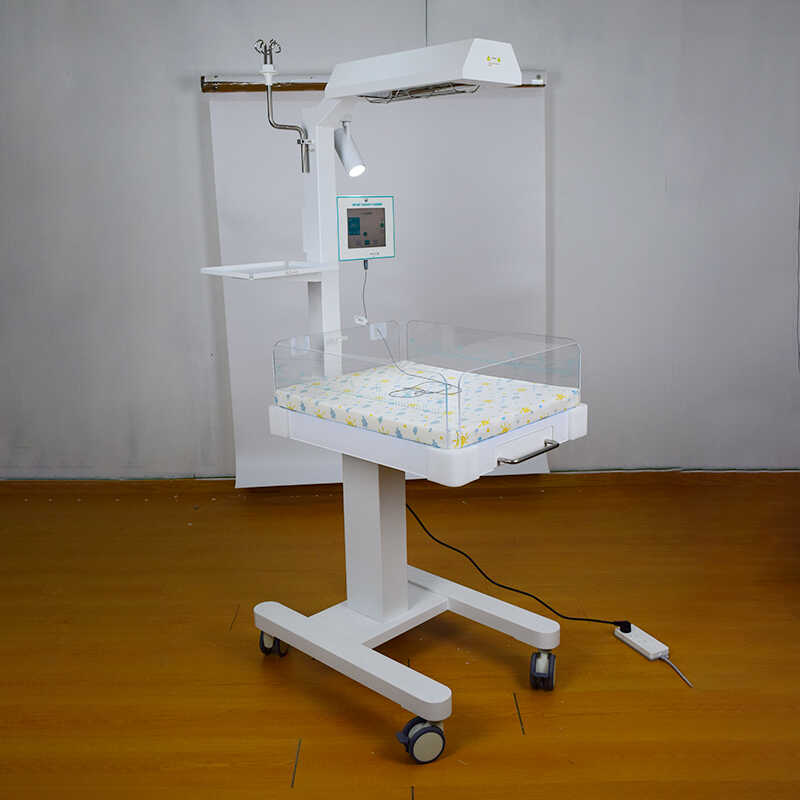

Infant Radiant Warmer N3

Microprocessor-Based Servo Temperature Control: Ensures precise, stable, and consistent infant thermal management.
Three Operation Modes: Pre-warm, manual, and automatic modes meet various clinical needs.
Independent Temperature Display: Set temperature and skin temperature are displayed separately for accurate monitoring.
LED Screen Display: Clear and user-friendly interface for quick adjustments and real-time data reading.
Far-Infrared Ceramic Heating Tube: Provides safe, efficient, and uniform radiant heat.
Automatic Self-Test & Alarm System: Audible and visual alarms for power failure, temperature deviation, probe failure, and over-temperature protection.
Adjustable LED Observation Lamp: Brightness can be adjusted to enhance infant observation.
Foldable Transparent Protector: Offers easy access and safety; equipped with two infusion seals.
Tiltable Infant Bed: Bed inclination can be adjusted up to ±12° for optimal patient positioning.
Practical Design: Includes one tray and one IV pole for clinical convenience.

Item	Specification
Power Supply	AC110/220V, 50/60Hz, 850VA
Skin Temperature Control Range	32°C ~ 38°C
Skin Temperature Control Accuracy	±0.5°C
Mattress Temperature Uniformity	≤2°C
Air Temperature Display Range	0°C ~ 45°C
Warm-up Time	≤45 min
Infant Bed Angle	±12°
Baby Bed Size	680 × 540 × 40 mm
Tray Size	325 × 255 mm
Operating Temperature	20°C ~ 30°C
Operating Humidity	30% ~ 75% RH
Atmospheric Pressure (Operation)	700 ~ 1060 hPa
Air Flow Velocity	<0.3 m/s
Product Size	580 × 930 × 1805 mm
Package Size & Weight	1080 × 740 × 520 mm (Gross 74 kg / Net 60 kg)
