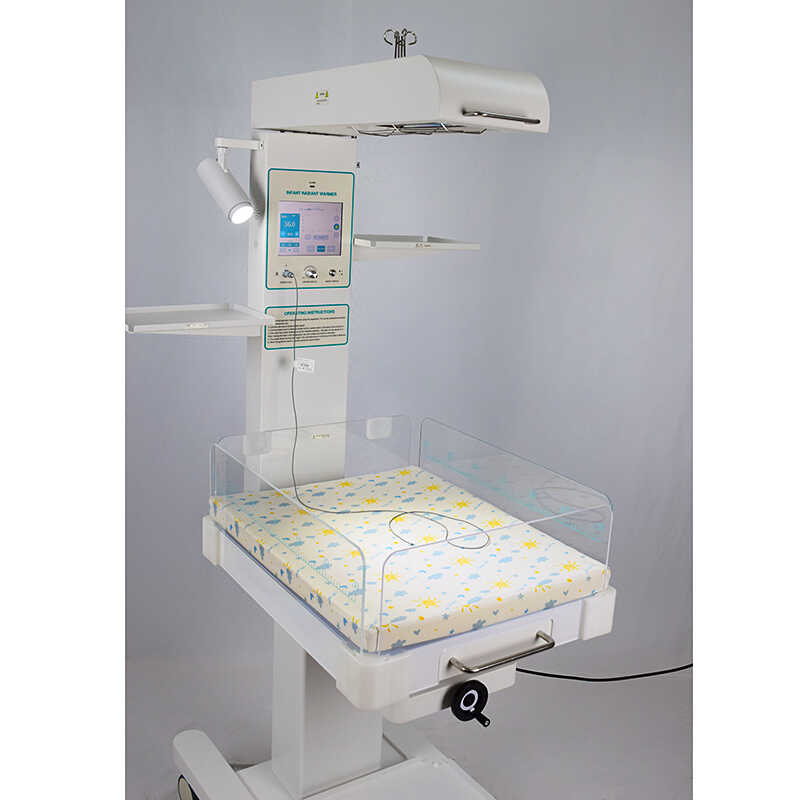

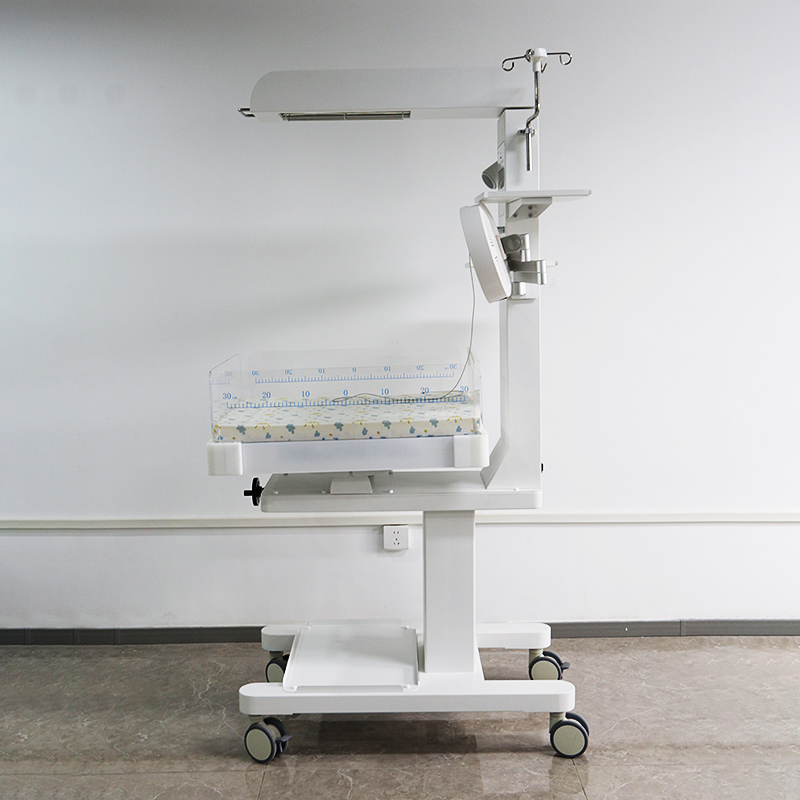

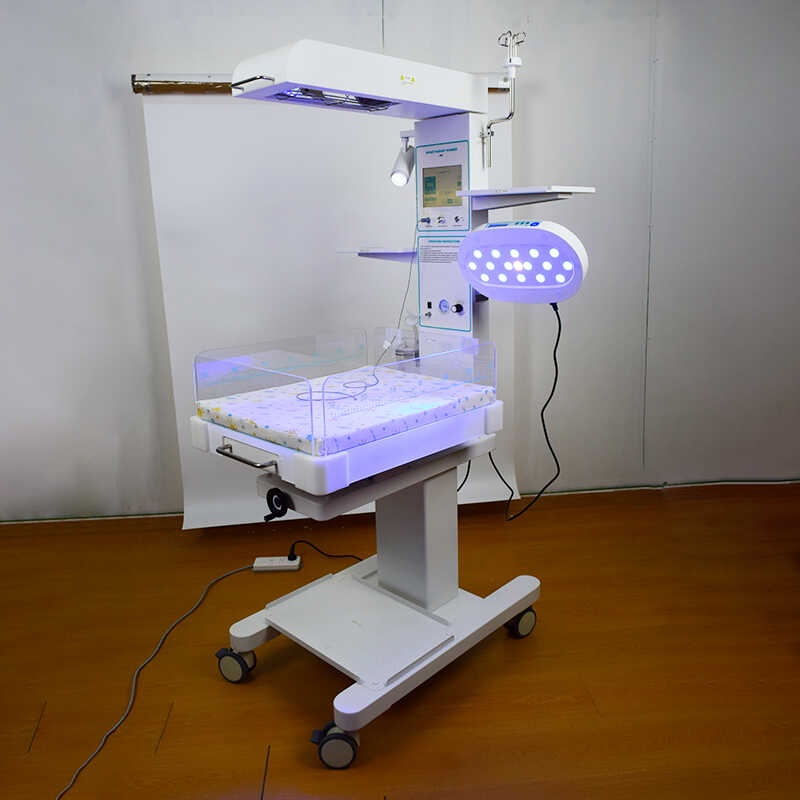

Infant Radiant Warmer N6

Microprocessor-Based Temperature Control: Advanced servo-controlled system ensures precise and stable thermal regulation.
Three Operating Modes: Pre-warm, manual, and automatic modes meet various clinical requirements.
Independent Temperature Display: Set temperature, skin temperature, and air temperature are displayed separately for accurate monitoring.

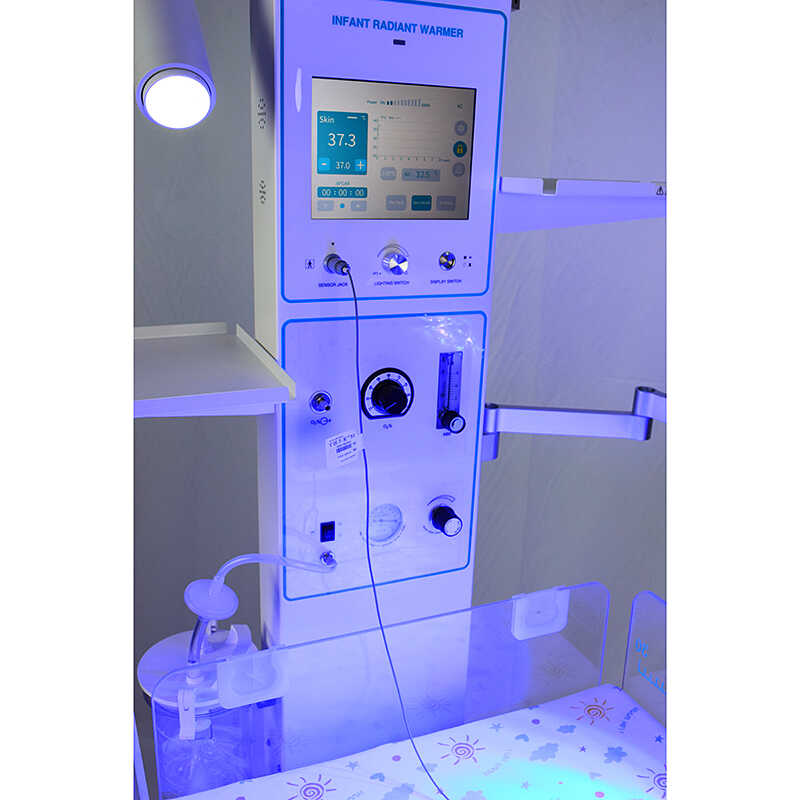

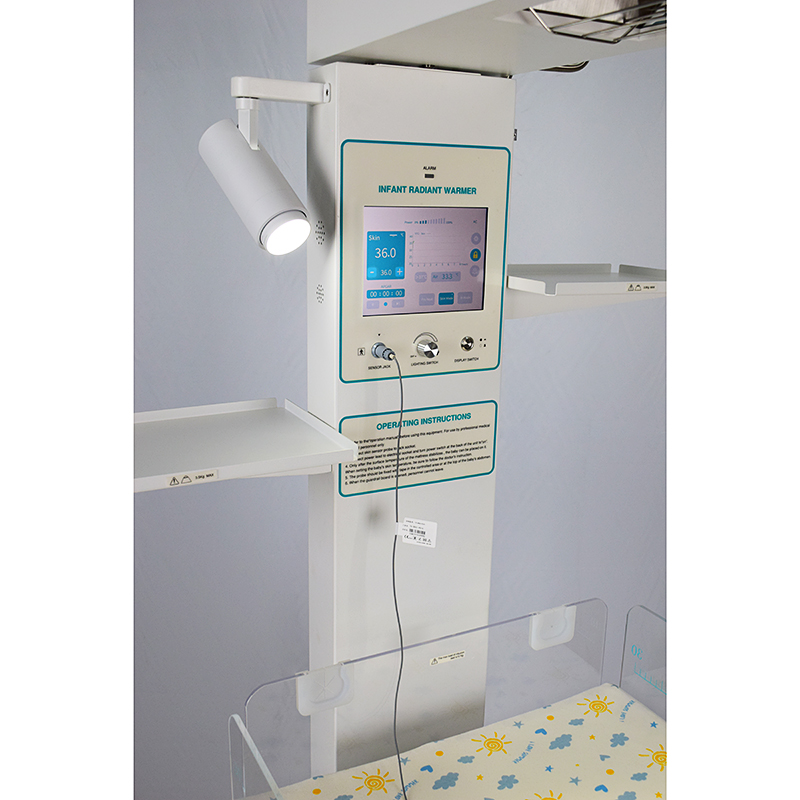

8” LCD Touch Screen: Clear interface with data recording, trend display, and easy operation.
Efficient Heating System: Far-infrared ceramic heating tube provides reliable and uniform radiation.
Comprehensive Safety Alarms: Audible and visual alarms for power failure, temperature deviation, probe failure, and overheating.
APGAR Timer: Convenient timer for recording therapy and evaluation time (1 min, 5 min, 10 min, etc.).
Adjustable Heater Head: Heater can rotate ±90° horizontally for flexible positioning.
Tiltable Infant Bed: Bed inclination angle is adjustable up to ±12° for medical convenience.
Adjustable Observation Lamp: LED observation light brightness can be adjusted as needed.
X-ray Cassette Holder: Convenient slot located under the infant bed for X-ray examination.
Transparent Foldable Protector: Provides safety and accessibility; includes two infusion seals.
Integrated Storage Design: Equipped with two trays, one IV pole, and a storage tray under the bed for clinical convenience.

Item	Specification
Power Supply	AC110/220V, 50/60Hz, 850VA
Temperature Control Modes	Pre-warm, Manual, Automatic
Skin Temperature Control Range	32.0°C ~ 38.0°C
Skin Temperature Control Accuracy	±0.5°C
Temperature Deviation Alarm	+1.0°C
Mattress Temperature Uniformity	≤2°C
Air Temperature Display Range	0°C ~ 45°C
Infant Bed Angle	±12°
Warm-up Time	≤45 min
Mattress Size	680 × 540 × 40 mm
Distance from Heater to Mattress	810 mm
APGAR Timing	1 min, 5 min, 10 min, etc.
Tray Size	325 × 255 mm
Operating Temperature	20°C ~ 30°C
Operating Humidity	30% ~ 75% RH
Atmospheric Pressure (Operation)	700 ~ 1060 hPa
Air Flow Velocity	<0.3 m/s
Product Size	980 × 580 × 1815 mm
Package Size & Weight	1180 × 880 × 870 mm (Gross 105 kg / Net 85 kg)
