Transport incubator TR1000

Transport Incubator TR1000

Dual Control Modes: Air and skin temperature controlled by advanced microprocessor system for precise thermal management.
Dual Power Supply: Operates with both AC and DC power; compatible with DC 12V or DC 24V for ambulance use.

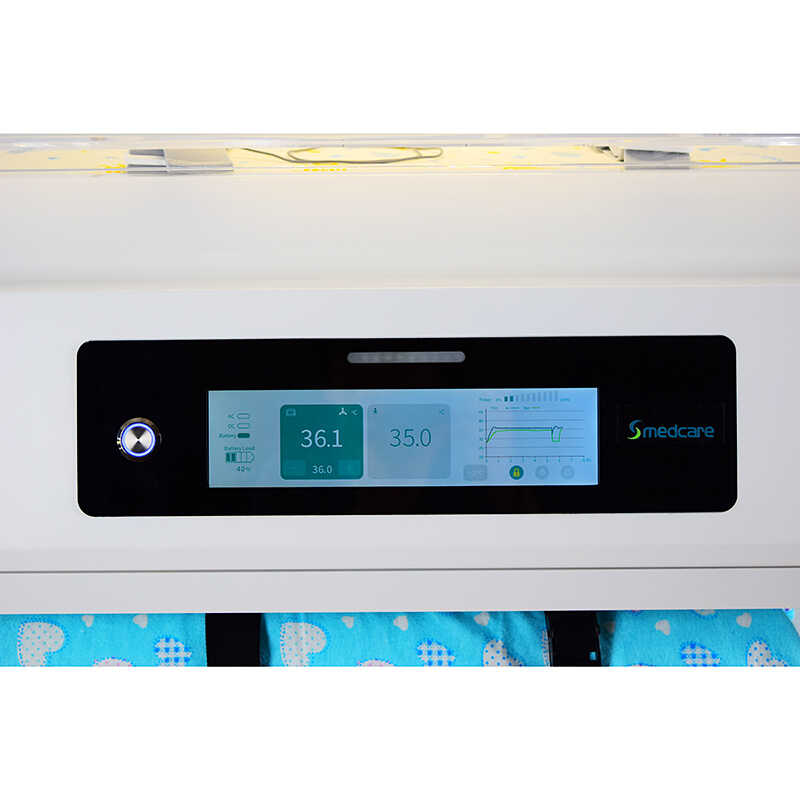

8.8” Touchscreen Display: Intuitive interface with data memory and temperature curve display.
Comprehensive Monitoring: Displays set temperature, air temperature, baby temperature, humidity, and internal battery capacity separately.
Audible & Visual Alarms: Failure alarms ensure real-time safety monitoring.
Natural Humidity Control: Maintains optimal humidity through natural air flow.
Adjustable Height Design: Entire unit height can be adjusted, equipped with damping and lock for stability.
Oxygen Integration: Includes oxygen cylinder and oxygen supply configuration for neonatal support.
Observation Lamp: Provides convenient lighting for infant monitoring and care.

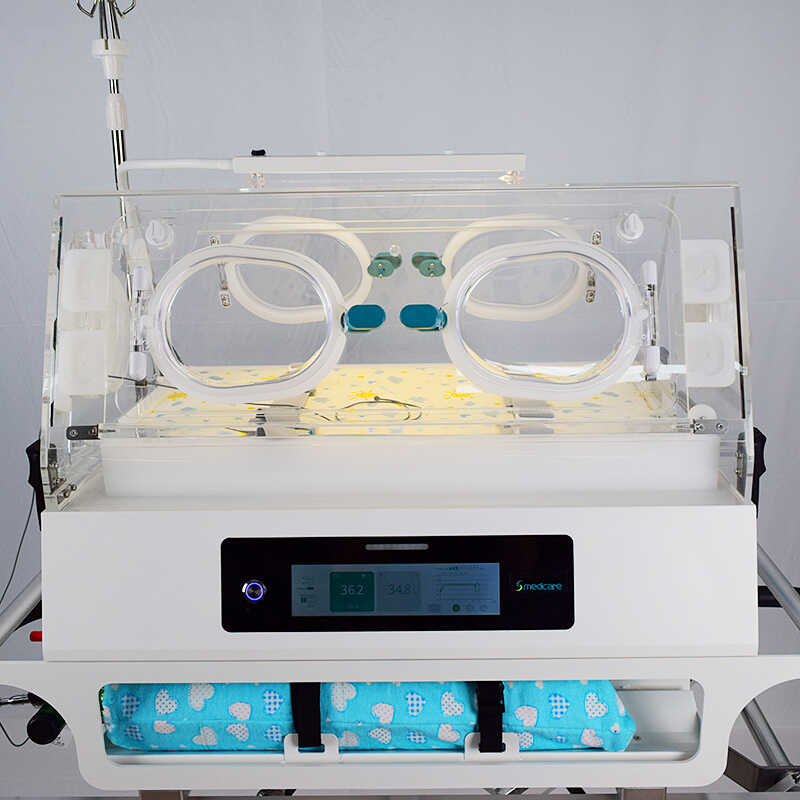

Double-Wall Hood Design: Enhances insulation efficiency; baby bed can be pulled out easily from the side door.

Item	Specification
Power Supply	AC110/220V, 50/60Hz; DC12/24V, MAX 450VA
Air Temperature Control Range	20.0°C ~ 37.0°C / 37.1°C ~ 39.0°C
Air Temperature Control Accuracy	±0.3°C
Air Temperature Deviation Alarm	+3.0°C
Skin Temperature Control Range	34.0°C ~ 37.0°C / 37.1°C ~ 38.0°C
Skin Temperature Control Accuracy	±0.3°C
Skin Temperature Deviation Alarm	+1.0°C
Temperature Uniformity	≤0.8°C
Warm-Up Time	≤45 min
Noise Level	≤50 dB(A)
Main Battery	DC 12.8V 36AH LiFePO₄ battery
Battery Working Time	Up to 20 hours
Battery Charging Time	≥2 hours
Hood & Control Cabinet Size	1000 × 545 × 665 mm
Trolley Size	1370 × 550 × 830/430 mm
Mattress Size	625 × 310 × 20 mm
Baby Incubator Weight	65 kg
Trolley Weight	28 kg
Operating Temperature	10°C ~ 30°C
Operating Humidity	30% ~ 75% RH
Atmospheric Pressure (Operation)	700 ~ 1060 hPa
Package (Hood & Cabinet)	1060 × 600 × 840 mm / 93 kg (Gross) / 65 kg (Net)
Package (Trolley)	1420 × 610 × 490 mm / 54 kg (Gross) / 28 kg (Net)
Packaging	2 Wooden Cases / Unit

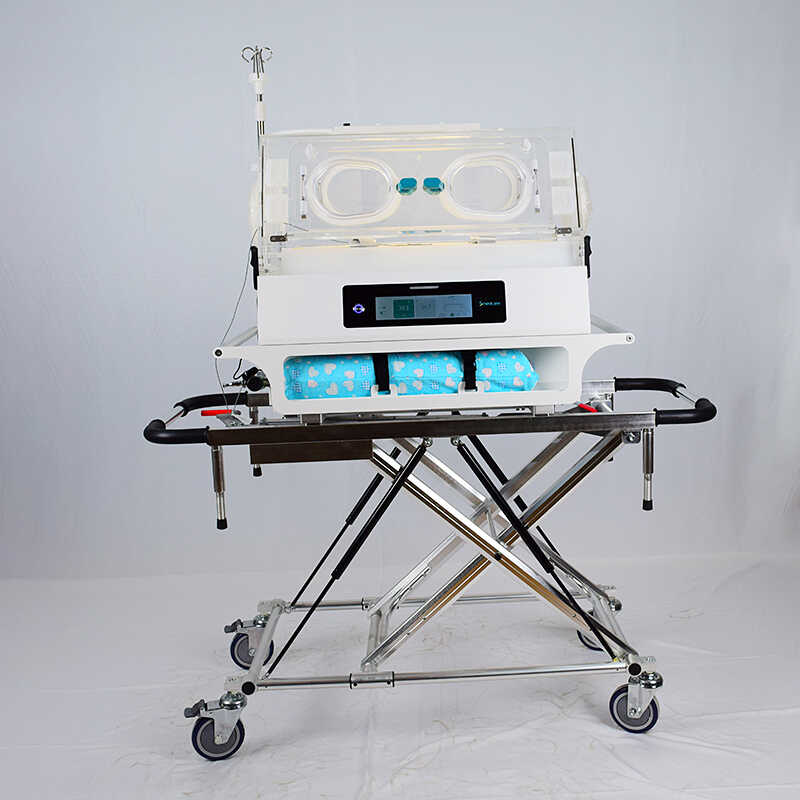

Ambulance Type Trolley: Designed for stable and safe transport in ambulance conditions.
