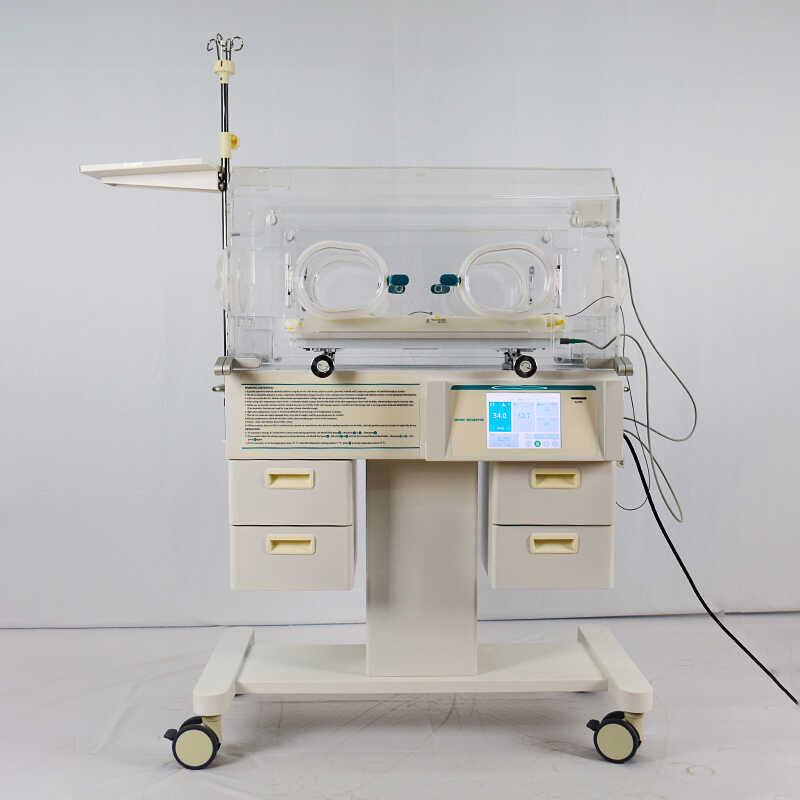

Infant Incubator M50: Precision Neonatal Care Solution

Advanced Climate Management

• Dual Temperature Control: Microprocessor-driven servo system with Air Mode (20.0°C–42.0°C ±0.5°C accuracy) and Skin Mode (32.0C–38.0°C ±1.0°C accuracy). Exceeds ISO standards with triple independent°C alarm).

• Integrated Environment Control: Regulates humidity (10%–90% RH ±5% accuracy) and oxygen concentration (21%–100% ±5% accuracy)**: Audible/visual alarms for 12+ failure scenarios including power loss, sensor faults, and fan malfunction.




Optimized Clinical Workflow

• Intuitive 8" Touch Interface: Real-time visualization of mattress (≤0.8°C uniformity), humidity timer, and heating power with self-diagnostics.
• Ergonomic Design Features:
• Adjustable bed tilt (±12°) with 370×630 mm mattress
• Low-noise operation (≤50 dB)
• Single-wall hood with 4 access windows, 2 iris ports, and 4 infusion seals
• Integrated IV pole + tray + 2 drawers + cabinet storage
• Rapid Thermal Response: Achieves set temperature in | SpecificationPower** | AC 110/220V, 50/60 Hz, 550VA |
  | Oxygen Control | 0–100% display, ±5% accuracy |
  | Dimensions | Base: 1070×600×950 mm |
  | | Hood: 980×600×550 mm |
  | Weight | Base: 31 kg |
  | Environment | 20–30°C, 30–75% RH, 700–1060 hPa |

Expandable Capabilities

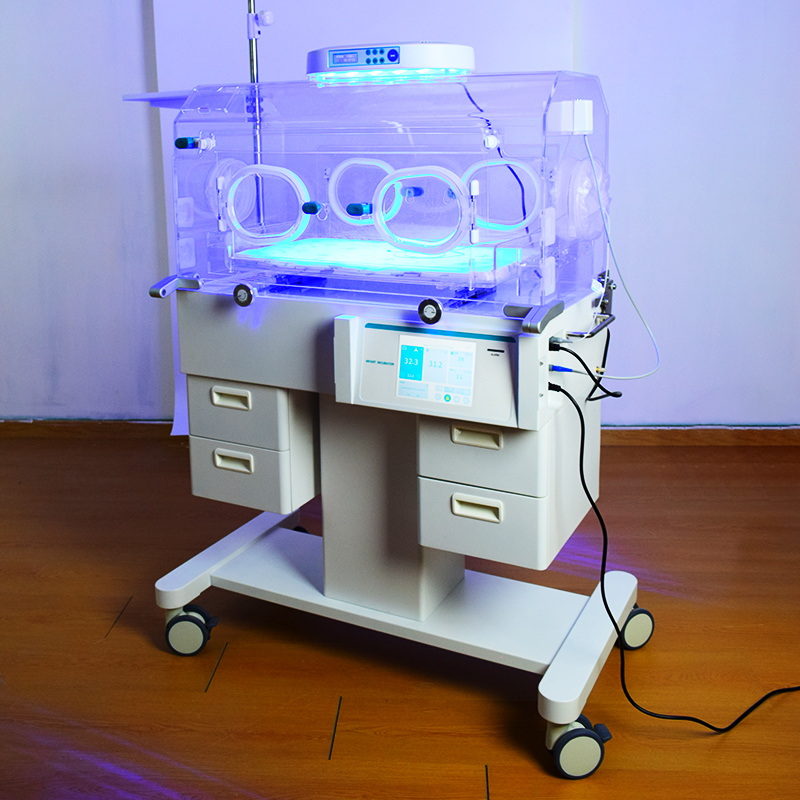

• Upper/Lower LED Phototherapy (H60/H80 units)
• Height-adjustable frame
• Integrated weighing system
• X-ray cassette holder

Logistics Compliance

• Storage/Transport: -20°C to +55°C, ≤95% RH, 500–1060 hPa
• Packaging: Dual protection

Engineered for critical NICU environments, the M50 combines RS232 connectivity for data integration with >37°C therapeutic. Optional phototherapy and tilt functions support developmental care, while cabinet storage optimizes workspace efficiency. Certified for global deployment with humidity-resistant construction and medical-grade materials.
